2000 Series

CamMate's world famous 2000 Series is for applications requiring extended camera height and reach. The NEW CamMate 2000 Series will provide quality, precision moves, and control, allowing you to reach new heights.

Constructed with our high strength 6 foot extensions, the CamMate 2000 Series gives you more combinations with greater weight limits. The 2000 Series is available in lengths of 12 feet (3.65 meters) up to 50 feet (15.2 meters). With all the same electronics features as our famous Travel Series, combined with a much greater camera reach, the CamMate 2000 series can't be beat!

2012 CamMate 2000 Series

Lens Height:	13' 5" - 4.09m
Reach:	7' 3" - 2.21m
Total Length:	12' 4" - 3.76m
Ballast Needed:	41 lbs. - 18.60 kilos
Weight of Crane:	84 lbs. - 38.10 kilos

2018 CamMate 2000 Series

Lens Height:	18' 9" - 5.72m
Reach:	13' - 4.17m
Total Length:	18' 9" - 5.72m
Ballast Needed:	128 lbs. - 58.06 kilos
Weight of Crane:	114.25 lbs. - 51.82 kilos

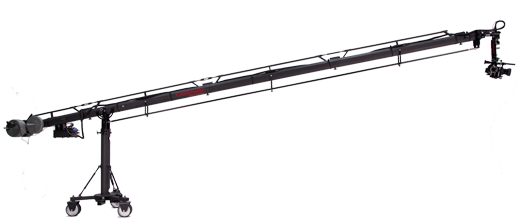

2024 CamMate 2000 Series

CamMate 2000 Series Crane Jib Boom Pathfinder Dolly

Lens Height:	24' 1" - 7.34m
Reach:	20' 1" - 6.12m
Total Length:	25' 2" - 7.67m
Ballast Needed:	326 lbs. - 147.87 kilos
Weight of Crane:	144.5 lbs. - 65.54 kilos

2032 CamMate 2000 Series

CamMate 2000 Series Cranes Jibs Booms Dollies

Lens Height:	29' 5" - 8.97m
Reach:	26' 6" - 8.08m
Total Length:	31' 7" - 9.63m
Ballast Needed:	534 lbs. - 242.22 kilos
Weight of Crane:	202 lbs. - 91.62 kilos

* Side Cable Assist Required (not shown)

2039 CamMate 2000 Series

CamMate 2000 Series Crane Jib Boom Dolly

Lens Height:	34' 9" - 10.59m
Reach:	32' 11" - 10.03m
Total Length:	41' - 12.50m
Ballast Needed:	465 lbs. - 210.92 kilos
Weight of Crane:	262 lbs. - 118.84 kilos

* Side Cable Assist (not shown) and Overhead Cable Assist Required

2043 CamMate 2000 Series

Lens Height:	40' 1" - 12.22m
Reach:	39' 4" - 11.99m
Total Length:	47' 5" - 14.45m
Ballast Needed:	681 lbs. - 308.90 kilos
Weight of Crane:	311 lbs. - 141.41 kilos

*Two Side Cable Assist (not shown) and Two Overhead Cable Assist Required

2050 CamMate 2000 Series

CamMate 2000 Series Jibs Cranes Booms Dollies

Lens Height:	45' 5" - 13.84m
Reach:	45' 9" - 13.94m
Total Length:	53' 10" - 16.41m
Ballast Needed:	905 lbs. - 410.50 kilos
Weight of Crane:	358.25 lbs. - 162.5 kilos

* Two Side Cable Assist (not shown) and Two Overhead Cable Assist Required

***The CamMate 2000 Series Cranes were mounted on a Roamer Dolly with Studio Wheels and a tall tube (4') for all approximate measurements. CamMate Lease Financing
